Turnstile Gate Installation Guide: Ensuring Efficient and Secure Entry Control

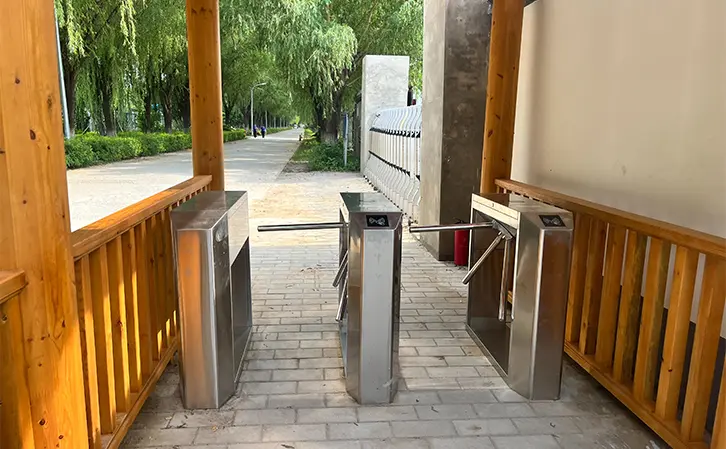

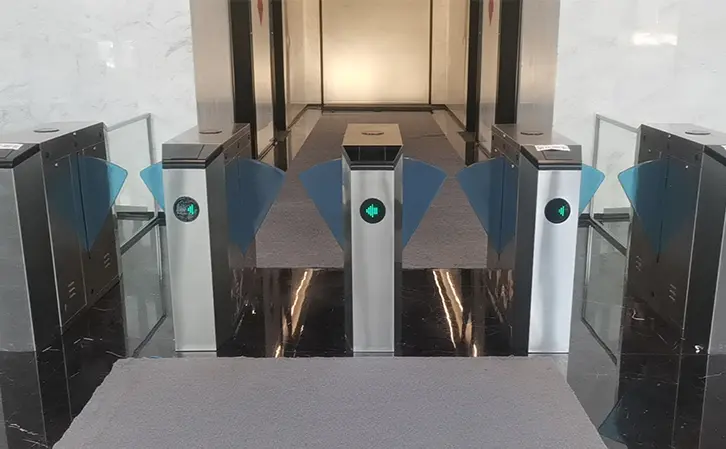

When installing a Turnstile Gate System, whether it’s a Swing Turnstile Gate,, Tripod Turnstile Gate,, Flap Turnstile Gate,

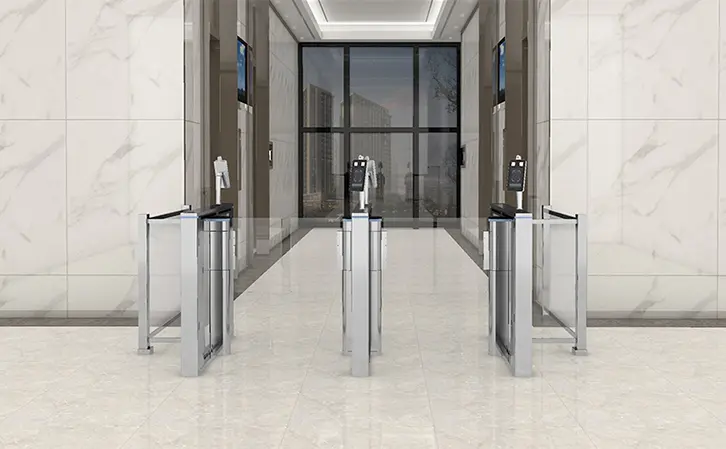

, or a Speed Turnstile Gate
, it is essential to follow the right installation process to ensure optimal performance and security. This guide provides a step-by-step installation process and common troubleshooting tips to keep your turnstile system functioning smoothly.
Step-by-Step Turnstile Gate Installation
1.Site Preparation
- Begin by identifying the installation site for your turnstile gate. Make sure the area is clean, level, and free from any obstructions.
- For Swing Turnstile Gates and Speed Turnstile Gates, ensure you have enough space to accommodate the swinging or sliding motions of the gate.
2.Base and Anchoring Installation
- Mark the installation positions according to the layout of the Turnstile Gate system. Use the provided base layout diagram to ensure precise positioning.
- Drill holes for the mounting anchors and install the base plates using M10 expansion bolts. Ensure the base is aligned and secured firmly.
3.Wiring and Electrical Setup
- Route the electrical cables through a 3/4″ PVC conduit. Bury the conduit at least 60mm deep to prevent exposure to environmental elements. Make sure all wiring connections are in place according to the wiring diagram.
- For Flap Turnstile Gates and Square Speed Gates, additional wiring may be required for their advanced control systems.
4.Control and Testing
- Connect the power supply and test the turnstile gate system. Ensure that all control functions, including opening, closing, and the safety sensors, are working correctly. Adjust the settings as needed to optimize performance.
- For Tripod Turnstile Gates, ensure the tripod arms rotate smoothly and lock securely after each passage.
Common Turnstile Gate Faults and Solutions
Even with professional installation, Turnstile Gates can sometimes experience technical issues. Here are some common problems and their solutions:
1.Turnstile Gate Fails to Open
- Issue: The most common reason for this fault is signal loss between the control board and the gate.
- Solution: Check the signal cables and ensure the connections are secure. If the signal is still not received, inspect the main control board for any faults.
2.Power Failure and Non-Automatic Operation
- Issue: Some Speed Turnstile Gates and Flap Turnstile Gates are designed to open automatically during power outages. If they fail to do so, the backup battery or power source may be depleted.
- Solution: Verify that the backup battery is charged or switch to a secondary power source, such as a 12V battery.
3.Turnstile Gate Opens but Does Not Close
- Issue: This could be due to a misaligned sensor or a signal disruption.
- Solution: Adjust the sensor alignment and check the closing mechanism for blockages or signal issues.
4.Inconsistent Movement in Multiple Gates
- Issue: When multiple gates (such as multiple Tripod Turnstile Gates or Square Speed Gates) are installed in tandem, they may sometimes open or close at different intervals.
- Solution: Ensure that the wiring for all gates is synchronized and that no cable damage or misalignment is causing the delay.
5.Sluggish or Jerky Gate Operation
- Issue: If the gate does not move smoothly, it could be due to debris in the track or motor issues.
- Solution: Clean the tracks thoroughly and inspect the motor for any signs of malfunction.
Maintenance Tips for Long-Lasting Turnstile Gates
Regular maintenance is key to keeping your Turnstile Gate in optimal condition. Whether you have a Swing Turnstile Gate, Tripod Turnstile Gate, or any other type, follow these tips:
- Lubricate Moving Parts: Regularly apply lubricant to moving components to prevent wear and ensure smooth operation.
- Check Electrical Systems: Inspect all electrical connections and ensure that the power supply is stable.
- Clean and Inspect Sensors: Periodically clean the gate’s sensors to avoid any operational disruption due to dirt or debris.
By following these installation and maintenance steps, you can ensure the reliable performance of your Turnstile Gate system, whether it’s for industrial, commercial, or residential use.
