Boom barrier gate

Automatic Parking Barrier Introduction

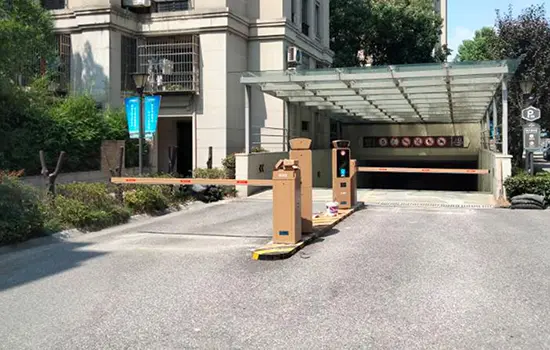

Boom barrier gate system is specially used to limit the passage of motor vehicles on the road entrance management equipment, is widely used in highway toll stations, parking lots, residential, enterprises and institutions at the gate, to manage the access of vehicles. The electric boom gate can be used to realize the lifting rod by remote control alone, or it can be automatically managed by the parking lot management system(i.e. ANRP).Parking barrier gate cooperate with license plate recognition system to realize smart parking.

Play Video about ANPR and Straight Barrier Gare Example Video QiGong

Features

1.The boom gate specially designed balance structure makes the brake lever start slowly, run quickly and stop slowly,the brake lever runs at 90 degrees permanently.

2. Intelligent overheat protection system is designed for the driving mechanism to control the temperature rise of the motor under frequent use, so that the motor is not easy to burn out and the use of pure copper core motor.

3.The boom gate can be matched with the license plate recognition system independently developed by QIGONG^® to realize intelligent parking and unattended. Save personnel costs for you.

Our Advantage

Brand Advantage

QIGONG^® have many years of manufacturing experience, and in the China industry is also one of the best companies.Serving major cities in China and more than 66 countries and regions around the world

R & D Advantage

QIGONG^® have the best R & D team and IT team in the industry.According to the market and customer demand, we continue to develop new high-tech products.

Boom Gate Product Specifications

Dimensions (mm): 357×297×1080 (L×W×H)
Working voltage: AC220V±10%
Motor input voltage: DC24V
Motor power: 120W
Working humidity: ≤95%, no condensation (at room temperature)
Noise requirement: ≤65 decibels
Protection class: IPX4
Communication distance: 35-50m

Working voltage: AC220V10%
Product power: 60W
Working temperature: -25°C~70C
Working humidity: ≤95%, no condensation (at room temperature)
Shell protection grade: IPX4

Standard Color: Champagne Gold
Chassis material: The main body of the fuselage is made of high-strength steel plate with a thickness of 1.5mm
Lever length: 1-4.5 meters optional
Take-off/drop time: 2.5-6S adjustable
Center height of main brake lever: 860mmFill light on/off control: software control
Support pole type: rectangular pole, fence pole, crank arm pole

Language : Chinese/English ,support customization
License plate recognition rate: >99.7% (all-weather)
Camera pixel: 3 million starlight level
Competition display: two-color LED display
Fill light power: 9W
Fill light on/off control: software control

Boom Gate Application Scenario

Our products can be used in different scenarios, such as: schools, governments, enterprises, hospitals, hotels, factories, supermarkets, etc. At the same time, we can also customize according to different application scenarios, special conditions on site and customer needs.

What scenario do you currently need to use? Contact us now to help you design.

Product Specifications

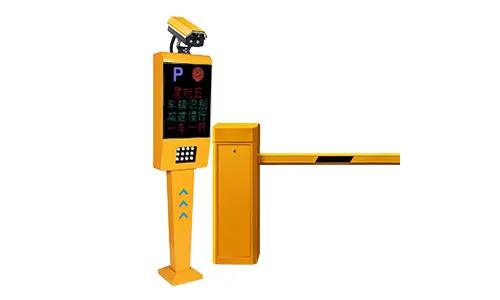

License Plate Recognition Camera

The boom gate barrier uses a 3 million star-level high-definition camera with a recognition accuracy of 99.7%. Customizable design to identify license plate numbers in your city.

Anti-Smashing Car Device

The boom gate DC motor does not heat up, and the vehicle travels more smoothly. It will automatically rebound when it senses obstacles to prevent pedestrians and vehicles from being injured.

License Plate Recognition Fill Light

The automatic barrier gate high-brightness LED fill light, with 9 lamp beads, the light is greater than 50 Lux at 5m, can be controlled by software, intelligent fill light, easy to identify at night.

Manual Control

When the automatic barrier gate fails to operate normally due to unexpected conditions such as power failure,we can operate it manually,to ensure the normal access of vehicles,the manual function can be turned off after power on,and the barrier gate can be automatically controlled.

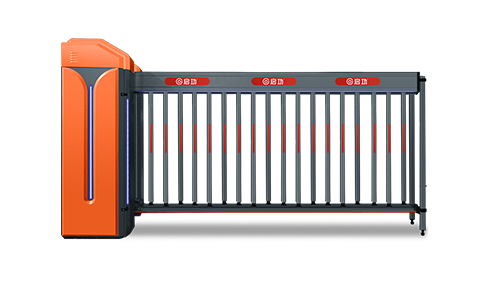

Types Of Boom Gate

choose the product that suits you

Why Choose Parking Barrier Gate ?

Because the equipment is simple, the wiring cost is low, the price is favorable, and the advertising gate can also earn advertising expenses, which is economical.

Enter the automatic induction, recognition time is short, quick response.

Simple operation, no maintenance and low labor consumption.Realize unattended operation and save more costs.

How To Choose The Parking Barrier Gate ?

First, choose manufacturers with good brand reputation, and standardize product quality and service systems in terms of scale.

Second,check to see if the manufacturer’s relevant qualification certification is complete and true compared with relevant industry standards.

Third, the choice of style is the key element of icing on the cake, the style and color of the style and the use of the scene style coordination.

Automatic Barrier Gate Project Analysis

Customer Profile

Hainan Hongzhou Real Estate Group , established on November 25, 2002.The scope of business is very broad.

Customer Needs

Entrances and exits are managed separately for vehicles and pedestrian passages.
The boom gate needs to be equipped with a license plate recognition system, internal vehicles are free to enter and exit, and external vehicles are prohibited from entering.
Entry and exit records are required for personnel to enter and exit.

Solutions

It is recommended that customers install advertising barrier gate for the vehicle passageway, which is not only beautiful but also can publish advertisements to promote the company. In addition, it is matched with our license plate recognition system.
It is recommended to use turnstile gates with face recognition for pedestrian passages to achieve access management, and you can check the traffic records from the system at any time.
