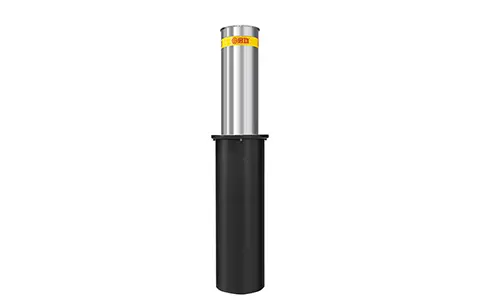

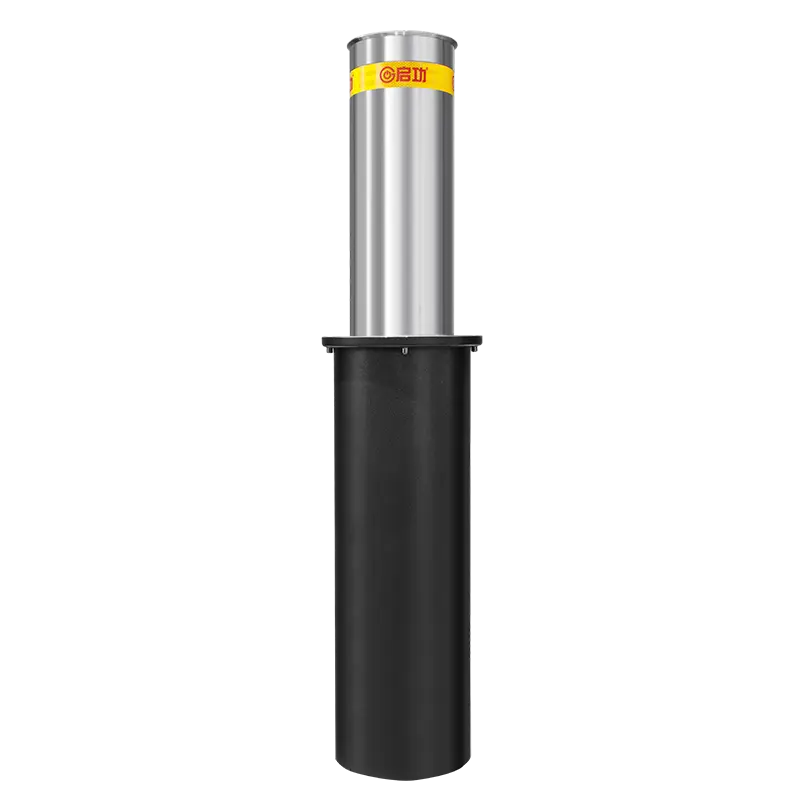

Semi-Automatic Bollard

Product Introduction

Semi-Automatic Bollard is usually suitable for channel control systems with higher security but less frequent use. For economic reasons, it is often used with fully automatic pile protection of the same appearance to provide higher safety protection and avoid complex strong and weak current construction.

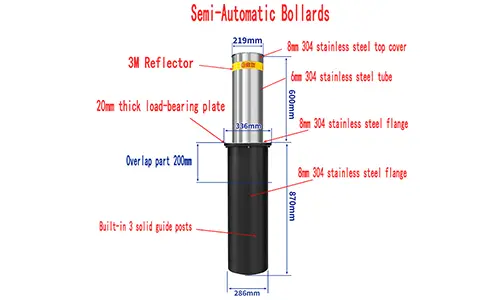

Product Specifications

Semi-Automatic bollard QiGong
  • Bollard diameter: 219mm(Optional 168, 273mm).
  • Bollards width:6mm (8、10、12mm).
  • Control mechanism: automatic raising, manual lowering.
  • Bollard body material: 304 stainless steel (surface polished).
  • Embedded material: A3 carbon steel (pickling + baking paint).
  • Working temperature:-35C-75C.
  • Protection level: IP68 (all outdoor environment)
  • Accessories: 1 special key
Semi-Automatic Bollard Introduction QiGong
  • Storage environment:-10°C-65C.
  • Reflective effect: Reflective sheet red, yellow, blue (LED lights can be installed).
  • Overall weight: 80KG.
  • Drive mode: compressed air.
  • Passing pressure: can pass 30-ton container trucks
  • Pressure relief tank specifications: embedded body height 785, extended height 600 (MM)
Semi-Automatic Bollard Lifting Operation Demonstration QiGong

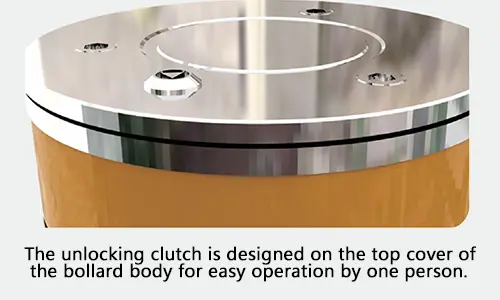

The descent process of the Semi-Automatic Bollard is mainly achieved by the operator’s own weight pressing down. When the top of the column reaches a position flush with the ground, the machine self-locks to maintain it. The rising process of the column is 100% realized by the internal air pressure device of the semi-automatic pile guard. After using a special key to release the mechanical lock, the column automatically rises to its original position and is self-locked without exerting any external force. The pneumatic booster device is available in a variety of specifications according to column specifications and customer requirements.

Semi-Automatic Bollard Tructure And Function

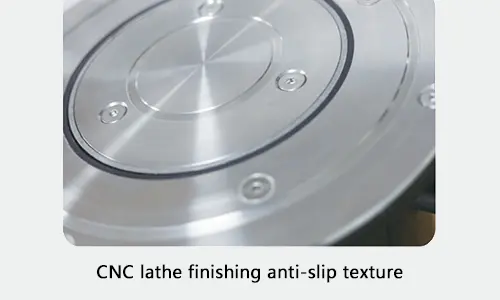

304 stainless steel panel

The thickened stainless steel panel ensures that the column can withstand pressure after it is lowered. It is processed by a lathe and treated with anti-slip texture on the surface.

Semi-Automatic Bollard Introduction-3 QiGong

304 stainless steel flange

Reinforced stainless steel flange, processed by a lathe, with anti-slip surface treatment; the skeleton structure is strengthened at the connection between the flange and the embedded body, and four screws are fixed to prevent the vehicle from sinking due to long-term traffic; the compression resistance is improved, making it stronger

Semi-Automatic Bollard Introduction-2 QiGong

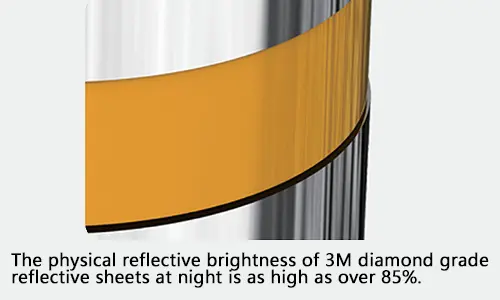

3M diamond grade reflective film

After soaking, stretching and other tests, it is ensured that the reflective sheet will destroy the glue structure and cause falling off in a long-term humid environment. Tiandi can still work normally after being soaked in water and impacted; the color selection is “red, yellow, white)

Semi-Automatic Bollard Introduction-4 QiGong

304 stainless steel bollard body

The bollard body is processed through a series of processes such as cutting, grinding, polishing, and spray molding.
