Automatic Retractable Gate QG-L600

Product Introduction

  • Automatic retractable gate is a kind of gate whose body can move freely to control the size of the gate opening and the interception and release of pedestrians or vehicles.
  • Automatic retractable gate is mainly composed of gate body, driving motor, slideway and control system.
  • The gate body is made of high quality stainless steel and aluminum alloy special profiles.
  • After a power failure, automatic retractable gate can be manually controlled to open and close.
  • The control system is provided with a control panel, a button switch, and a wireless remote control device can be arranged according to requirements.

Product Specifications

best outrdoor driveway retractable gate aluminium retractable gate QiGong

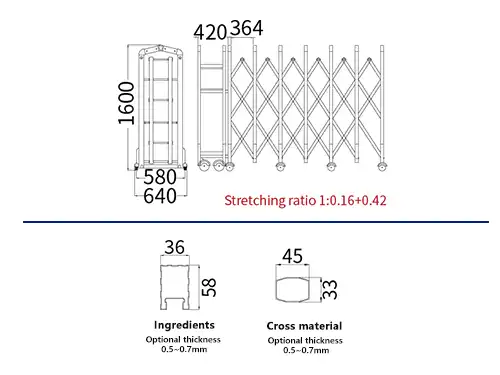

automatic Retractble gate telescopic electric gate QiGong QG-L600 line graph
  • Automatic retractable gate body single track, trackless mode selection;
  • Automatic retractable gate motor: high stability, large output torque, can adapt to frequent positive and negative rotation, compact structure, embedded thermal protection device, prolonging the life of the motor;
  • Applicable scene, level all the automatic retractable gates on the concrete floor (the ground should not have obvious steps, potholes and slopes)
  • The automatic retractable gate body is equipped with electronic soft start and mechanical buffer device, the host does not shake and runs smoothly when opening and closing
  • Features of automatic retractable gate activities: the main body is assembled with aluminum profiles and nylon rubber pads, and wear-resistant PV sleeves are used
  • The automatic retractable gate motor is equipped with overheating and overcutting protection devices.,when the motor continues to run and reaches a certain temperature, it will automatically cut off the power and enter the protection state to prolong the service life of the motor.
  • The automatic retractable gate body motor is equipped with a manual clutch.,when the power is off or overhauled, the clutch device can be opened with the manual clutch key, and the automatic retractable gate body can be manually pushed to run.
  • Compatible with smart devices:①Access control (fingerprint password, fingerprint access control, password card)②ANPR③face recognition④Bluetooth identification⑤Mobile APP, etc.
  • Head width 640mm
  • Gate width 580mm
  • Gate row wheel spacing  580mm
  • Overall width of the gate 640mm
  • Main ingredient Optional thickness 0.8-0.9mm
  • Cross material Optional thickness 0.8-0.9mm
  • Length can be customized
  • Empty gate spacing 364
  • Gate height 1600mm
  • Stretching ratio 1:0.16+0.42
  • Motor Power 430w/450w/750w

automatic retractble Gates tructure and function

automatic-retarctable-gate-outdoor-retractable-fence-gate-retractable-gate-for-driveway-QiGong-LED-display.webp

LED smart display

Waterproof and creepage proof, lower power consumption, energy saving and more comfortable.

Automatic retractable gate LED display support DIY personalized customization, customers want to display the information text, can also be equipped with a rolling display, text information can be rolled carousel display.

commercial-retractable-gate-deck-retractable-gate-automatic-retarctable-gate-QiGong-Infrared-sensor.webp

Anti-climbing and anti-collision system

Automatic retractable gate is equipped with an intelligent infrared probe anti-collision device, and the gate can automatically return to operation when it encounters a person or a foreign object 30-50cm away during the closing process.

Install an intelligent infrared sensor anti-collision device, when someone climbs over the gate, it will automatically alarm.

automatic-retarctable-gate-outdoor-retractable-safety-gate-retractable-gate-driveway-QiGong-app-control.webp

Support APP remote control

  • The conventional way to open the automatic retractable gate is remote control, which is also used for many.
  • If it is necessary to control the entry and exit of vehicles, it can be used with the automatic license plate recognition system.
  • When you are not within the distance of remote control, you can use the mobile APP system to open and close.
automatic-retarctable-gate-motor-heavy-duty-retractable-gate-motor-retractable-folding-gate-motor-QiGong.webp

Automatic retractable gate motor

  • Copper core motor, stable performance, long service life.
  • Good heat dissipation and automatic overheat protection.
  • The motor is provided with a clutch device, and when the automatic retractble gates is powered off, the motor clutch can be opened to manually control the switch.

Autoamtic retractable gate Material Selection

automatic-retarctable-gate-custom-retractable-gate-retractable-electric-gate-small-retractable-gate-QiGong-stainless-steel-material.webp
  • Stainless steel: welding process replacement parts need welding machine welding the material is hard, durable and good in wind resistance effect.The stainless steel material is divided into stainless steel 201 and stainless steel 304.
  •  Feature: ruggedness .
  • Color: stainless steel primary color can not paint, adsorption is too poor easy to drop paint.
automatic-retarctable-gate-garage-retractable-gate-retractable-sliding-gate-QiGong-aluminum-alloy-material.webp
  • Aluminum alloy: assembly process replacement parts easy replacement, screw assembly Lifetime rust free, suitable for chemical plants, acidic areas, coastal areas, electrophoretic surfaces, oxidation resistance, corrosion resistance.
  • Feature: never rust and many styles.
  • Color: black, silver, gray, red (according to the style).
