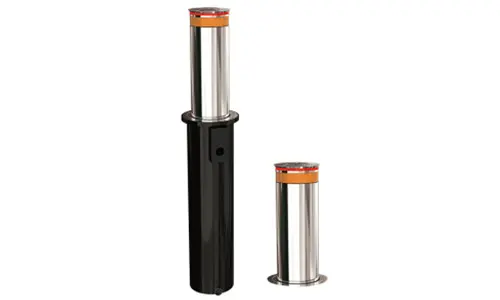

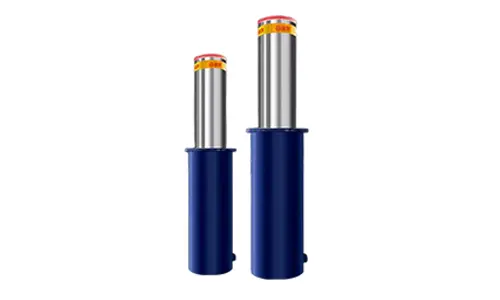

Automatic Bollard
Product Introduction
This automatic bollard is suitable for residential areas, schools and other civil occasions with low protection requirements. The embedded depth is 200mm. The lampshade-type LED warning light is economical, easy to install, maintenance-free, cost-effective, and economical and durable.
Product Specifications
- Bollard body diameter: 219mm(Optional 168, 273mm pipe diameter)
- Bollards body height: 600 mm (300-1500mm can be customized).
- Bollard diameter: 273mm.
- Embedment height: 870mm

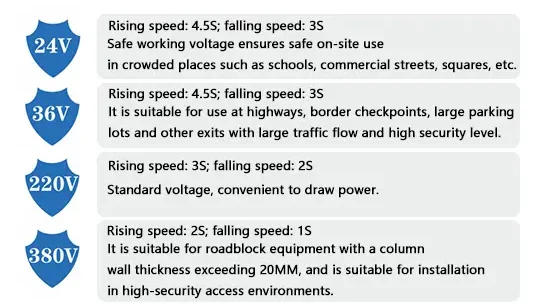

- Lifting time: rising ≤ 3S falling ≤ 2S.
- Motor power: 350W.
- Bollard width：6mm.(optional 3, 5, 8, 10mm).
- Power supply: 220V daily voltage (optional DC24V, AC380V).
- Storage environment: -9C~66C.
- Drive mode: integrated electro-hydraulic
- Passing pressure: can pass 50-ton container trucks
- Protection level: IP68 for all outdoor environments
- Overall material: bollard body 304 stainless steel, embedded body A3 carbon steel.
- Bollard body color: stainless steel color (can be customized)
- Control method: remote control (can be customized with 100-meter wire control, mobile phone APP remote control, etc.
- Linkage control: one-click linkage, group control, license plate recognition, radar anti-top.
Automatic Bollard System
Multi-device linkage: ultra-clear panoramic monitoring and dual-channel integration of equipment status, througlhigh The clear camera monitors the status of the equipment in real time, and realizes panoramic monitoring when the liftingcolumn is raised. Linkage with the duty center of the lifting column, supporting 24-hour uninterrupted monitoringin the cloud Control, and display the geographic location, lifting status and fault code of the equipment in real time,so that For rapid positioning and response, improve safety

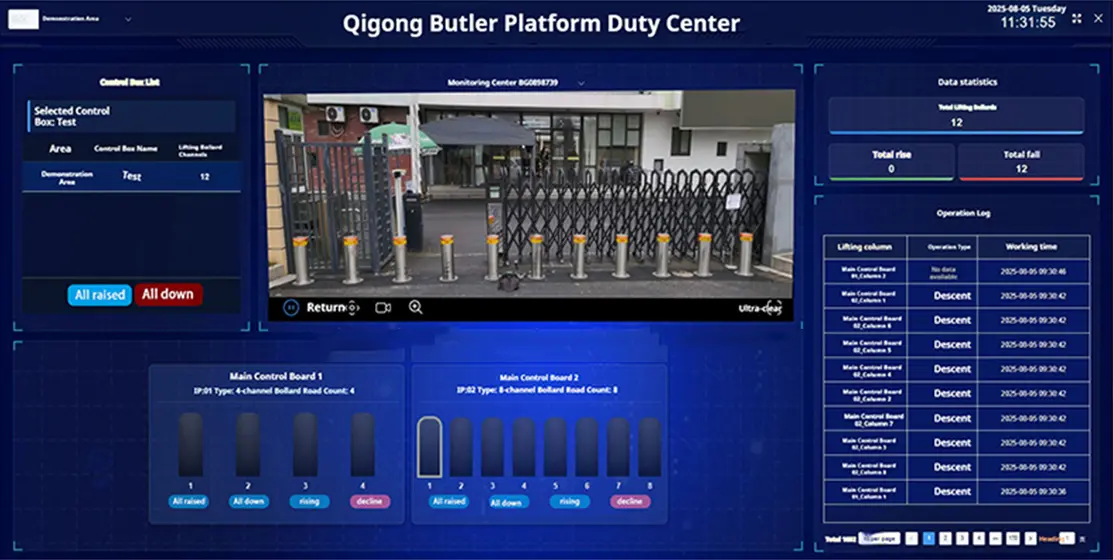

Duty Center
The Duty Center comprehensively visualizes lift column operations, integrating the core functions of remote control for lift columns in detail.
Operational logs, monitoring screens, and operations down to each pillar have been displayed.

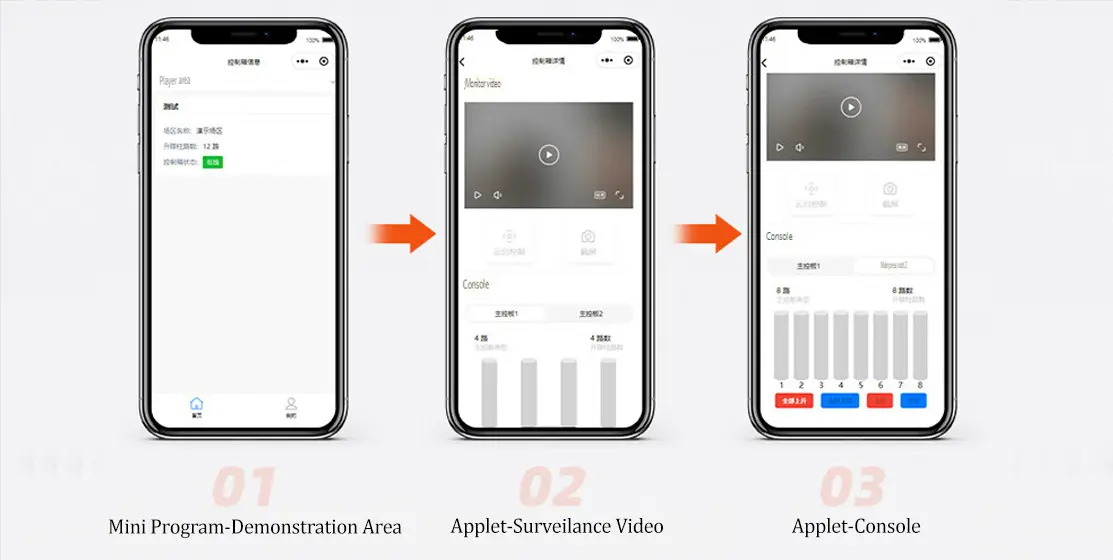

Mobile applet: Column Butler provides the operation interface of the applet, covering diferent controls The operation interface ofdifferent lifting columns of the box making realizes the monitoring and visualization of the whole operation link monitoring.Themini program supports different operating permissions of the currently logged-in user, and it can be done without After logging inwith the same account, you can operate different lifting column function rooms and personnel information, and manage Moreconvenient and convenient

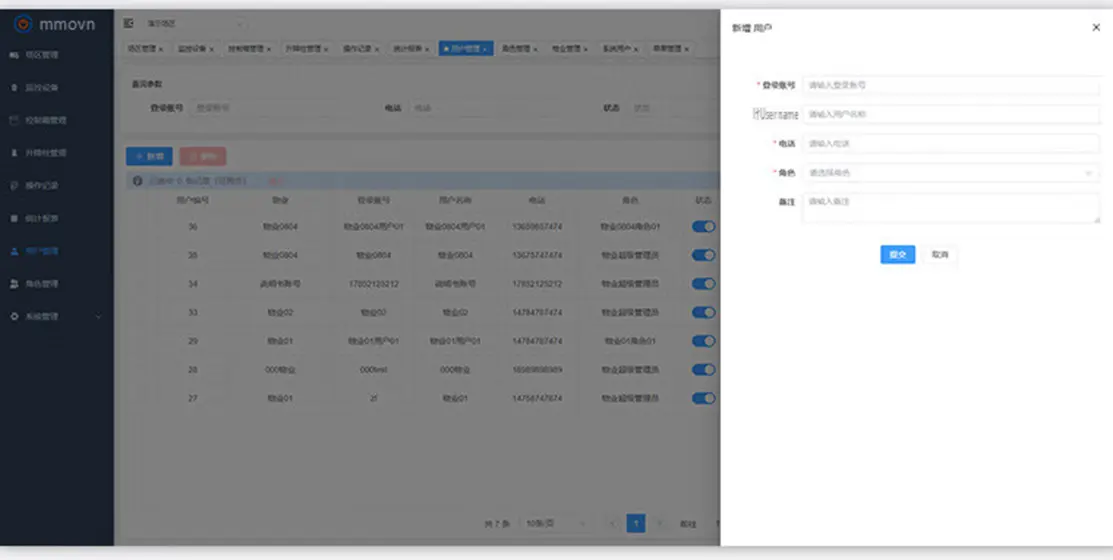

User management: The system supports rights management, and different accounts can be operated or seen.
The same function button, different menu interface.Support multi-level user creation permissions and Control of data permissions in the field area

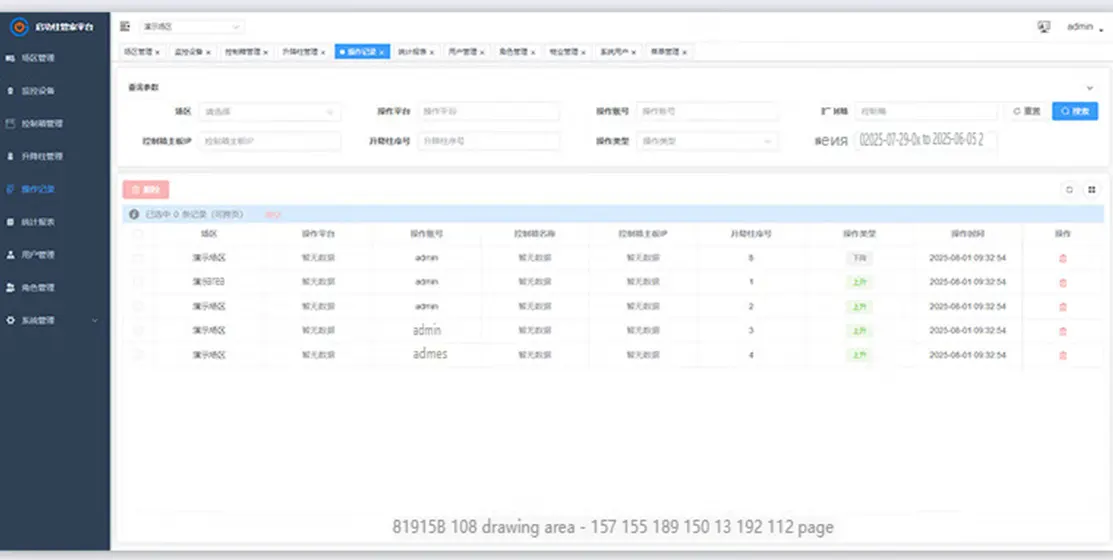

Operation record: The operation record is the record of the current lifting column falling and rising. The system supportsthree The types of operations are remote control, mini program, and background management system.Detailed recordThe operator, the operation time, and the status of the operation.

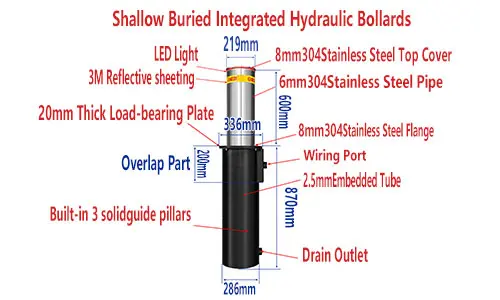

Explosion Proof Retractable Bollard Tructure And Function
304 stainless steel panel
The thickened stainless steel panel ensures that the column can withstand pressure after it is lowered. It is processed by a lathe and treated with anti-slip texture on the surface.
304 stainless steel flange
Reinforced stainless steel flange, processed by a lathe, with anti-slip surface treatment; the skeleton structure is strengthened at the connection between the flange and the embedded body, and four screws are fixed to prevent the vehicle from sinking due to long-term traffic; the compression resistance is improved, making it stronger
Shade type LED lamp
The 12V waterproof LED warning light has high warning, strong reflection and good light transmission. It has been tested by immersion and stretching to ensure that the light holder can still work normally after being immersed in water and impacted; when the column rises and falls, the light continues to flash to provide a warning. Color selection (red,)
Lamps available (embedded, top-beam, lamp bead)
304 stainless steel bollard body
The bollard body is processed through a series of processes such as cutting, grinding, polishing, and drawing; the surface is treated with a drawing effect, which is beautiful and wear-resistant.
