Aluminum Flower Telescopic Gate

Product Introduction

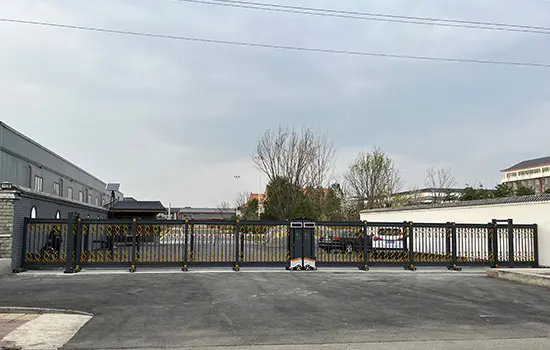

Telescopic sliding gate is a kind of gate that separates each paragraph. The gate body is composed of multiple sections and moves back and forth during operation, thus forming an effective hiding and looking more beautiful. For the integration of the user’s needs and the surrounding environment, the style, texture and material of the automatic telescopic sliding gate can play a very good role in embellishing the corporate image. The front of the gate body can be installed with a rolling display screen, which will display the prompt information during operation, so that it has a more high-end and beautiful image.

Product Specifications

The limit length of the gate body is 22 meters, and the clearance at the gate is 20 meters; the height can be made from 1 meter to 2.2 meters (trackless can be used within 18 meters, and the ground is required to be very flat), the gate body running speed: 12 meters per minute, motor power: 650W;
The gate body is assembled by high-quality aluminum alloy, without buried joints, the overall shape is beautiful and generous, durable and not easy to rust;
The gate body is a multi-piece stackable type, which solves the problem of shrinking after the gate is fully closed. The number of stacked pieces can be 25 pieces (segmented according to the length of the user);
Applicable field: all gates on the level water surface (the ground should not have obvious steps and potholes, the horizontal drop between the left and right is not more than 10 cm for 10 meters, and the horizontal drop between the front and rear is not more than 1 cm per 1 meter);
The motor is equipped with overheating and overheating protection devices. When the motor runs continuously to a certain speed, it will automatically cut off the power and enter the protection state to prolong the service life of the motor;

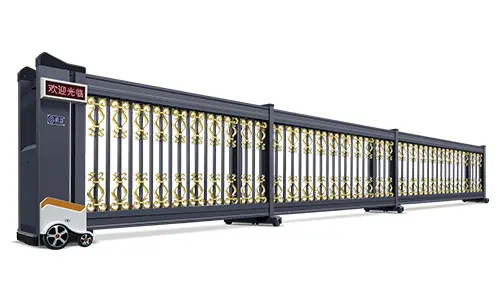

A display screen is installed at the front of the gate body, and prompt information or customized information will be displayed scrollingly during operation;
The upper and lower frames of the gate body can be selected to prevent rain, snow, and sand from entering the structure to ensure that the harsh environment will not affect the normal use of the gate;
Follow-up harmonic loop routing technology to ensure electricity safety;

Wide gate chassis, good wind resistance, equipped with wind-resistant hook design, can be installed with steel rails or aluminum alloy rails;
Baking paint process: choose Holland Aknojer electrostatic powder without spraying;
Emergency stop function: When the product is running well and encounters an emergency, the power of the main control box can be quickly cut off through the emergency stop switch;
Voice function: When the gate body is running, there is a voice prompt function to attract the attention of vehicles and personnel;
Anti-collision function: In the state of closing the gate, the intelligent infrared anti-collision can immediately stop and return automatically when encountering people or objects;
Safety and anti-theft: when the gate body is in the stop state, the gate body can be self-locked through the worm gear mechanism of the reduction box, and the external force cannot be pushed open;
Leakage protection: The product has a leakage protection function, which can protect the control system from grounding, overcurrent, and overvoltage;
Compatible with smart devices: ①Access control (finger code, fingerprint access control, secret card) ②License plate recognition ③Face recognition ④Bluetooth recognition ⑤Mobile APP, etc.;
The gate is 145mm from the ground, and anti-climbing silver teeth (40mm) can be added to the top of the gate, waterproof level: IP44;
The relationship between the light on the gate body and the length of the gate (behind the pillar): two sections: gate length = light + 12 meters three sections: gate length = light + 14 meters four sections: gate length = light + 1 meter five: gate = See light + 18 meters.

telescopic sliding gate tructure and function

High-power motor

Automatic telescopic gate motor is equipped with overheating and overload protection devices .The motor runs continuously up to a .When the temperature is set, it will automatically cut off the power and enter the protection state to prolong the service life of the motor.

High-density aluminum

Telescopic gate main beam is made of high-strength carbon steel or aluminum alloy, and the structure is firm.Hot dip galvanizing + spraying treatment, rich colors, more choices.

Intelligent infrared sen device

Optional anti-pinch, anti-collision function, in the opening/closing operation state, the mechanical anti-pinch switch device is touched, the rubber strip by people or objects will trigger the anti-pinch anti-collision function, touch the door can be quickly cut off to stop operation, to ensure safety.

Running smoothly

The gate body is designed to operate in sections. Each section of the gate body has an independent chassis and axle wheel, which is stable in operation and elegant in appearance.
